Introducing the Solution to the Oversized GM Shift Lever Problem
We've worked hard to bring you a clean, OEM style solution for the oversized shift lever found in 2022.5 and newer GM Sierra and Silverado 1500, 2500 and 3500 models.

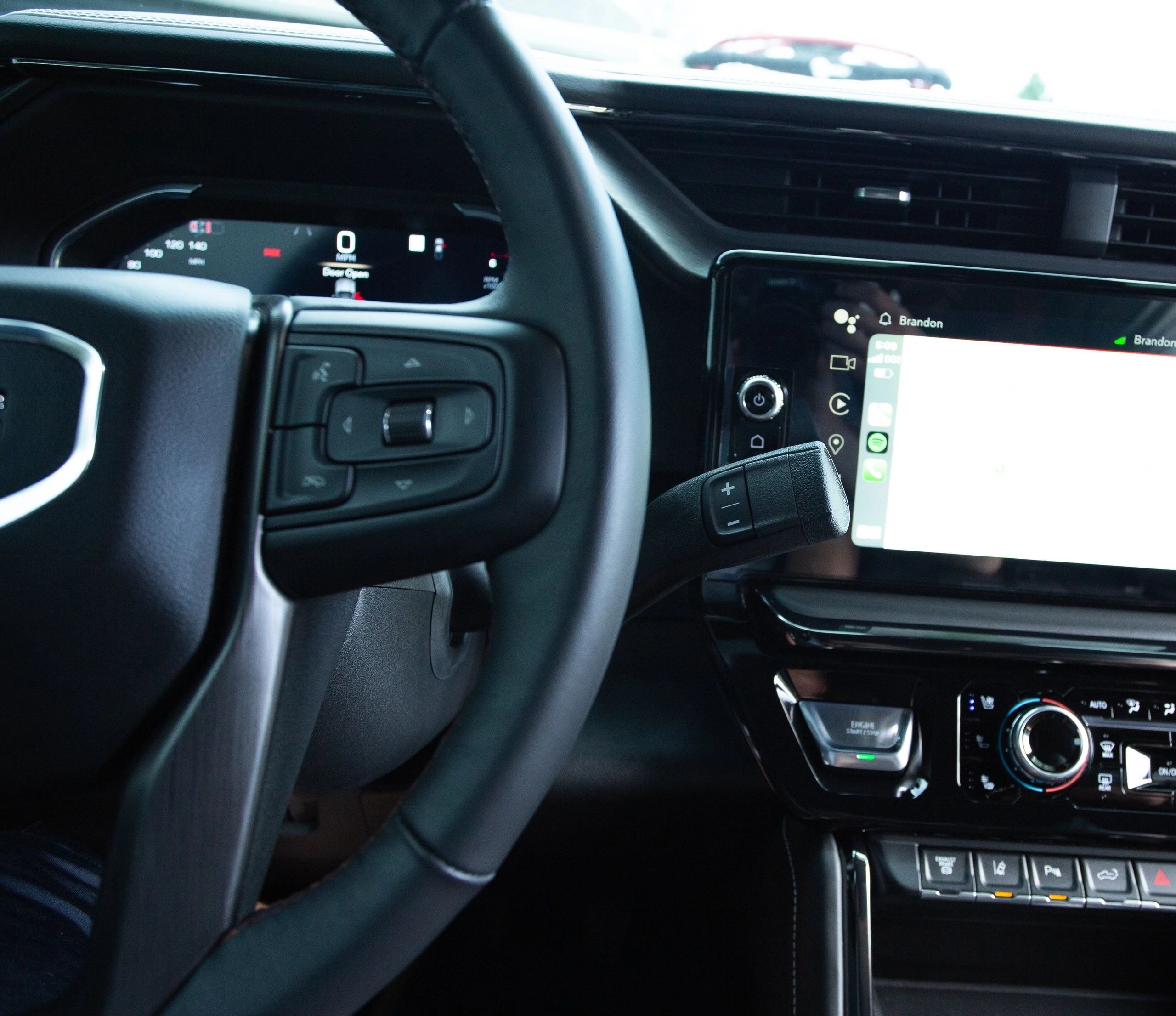

One of the biggest complaints with these trucks especially the 2022.5 refresh models with the 13.4” infotainment screen is how the massive column shifter obstructs the screen while in Drive.
This issue continues in the 2024+ Silverado and Sierra HD (2500/3500) models with the same column-mounted shifter design.
- Shortened by 1.7 inches for better visibility and ergonomics
- Equipped with redesigned, OEM-style end cap
- Injection molded (not 3D printed) for durability and a true factory look
Tools needed
Tools needed are a 7mm socket, T30 OR T25 torx (Most years have a T30), ratchet and a small flat head screw driver. (Clip tool but not necessary)
Step 1
Remove the 7mm screw from under the steering column.
Step 2
Separate the top and lower steering column trim by carefully pulling up with your hands OR a plastic trim tool If needed.
Step 3
Step 4.5
Pull back the shift boot to access the T30 OR T25 torx bolt (Most years have T30) and remove.
Step 4
Step 4.5
Step 4.5
Follow the single wire coming out of the shift lever and pry up on the small black clip holding the wire down. (You will need to transfer this black Xmas tree clip to the new shift lever wire) Then unplug the connector (small black clip on connector will need to be transferred to the new shift lever connector) and remove the shift lever.
Step 4.5
Step 4.5
Step 4.5
Pull back the red tab and push the small black tab to release the connector.
Step 5
Step 5
Step 5
Remove the rubber boot from your old shifter and install it on the new short shifter.
step 6
Step 5
Step 5
Install the new short shift lever into the steering column and install the T30 OR T25 torx bolt WITH a drop of blue loctite.
Step 7
Step 5
Plug in the connector and push the black Christmas tree clip into the column
step 8
step 8
Snap the upper and lower steering column back together and install the 7mm screw (Bottom of the steering column) Install now complete!!
